Fiberglass Grating
Product Details:
Fiberglass Grating Price And Quantity
- 10 Piece
- 280 INR/Piece
Fiberglass Grating Trade Information
- vadodara
- Cash in Advance (CID)
- 10000 Piece Per Day
- 7 Days
- Yes
- Sample costs shipping and taxes has to be paid by the buyer
- Standard Packing
- Asia
- All India
- ISO
Product Description

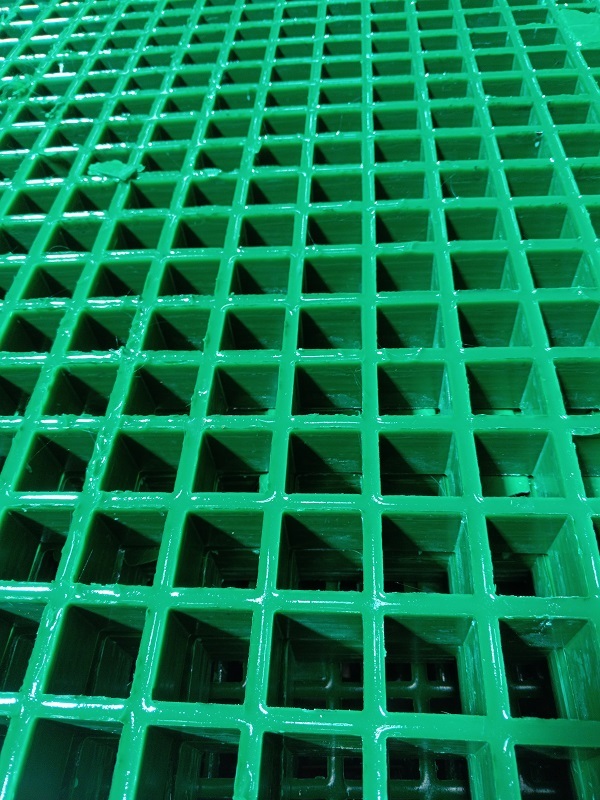

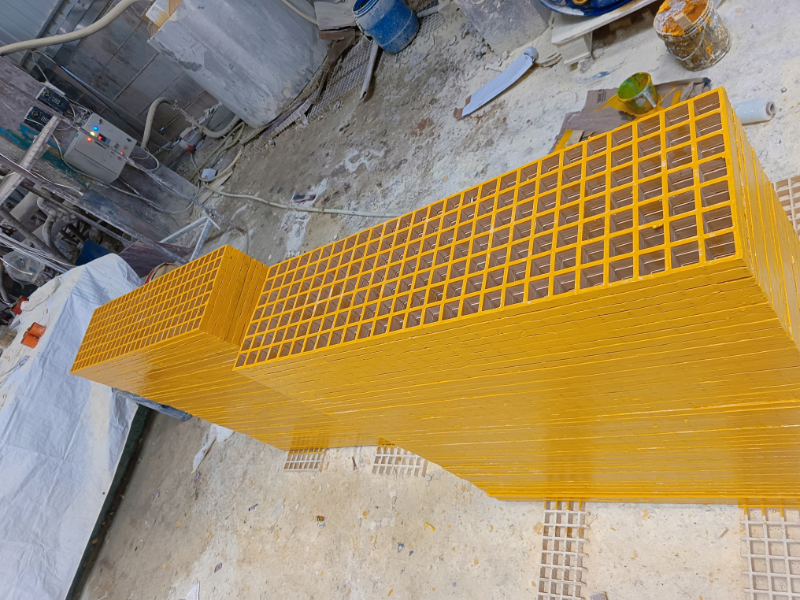

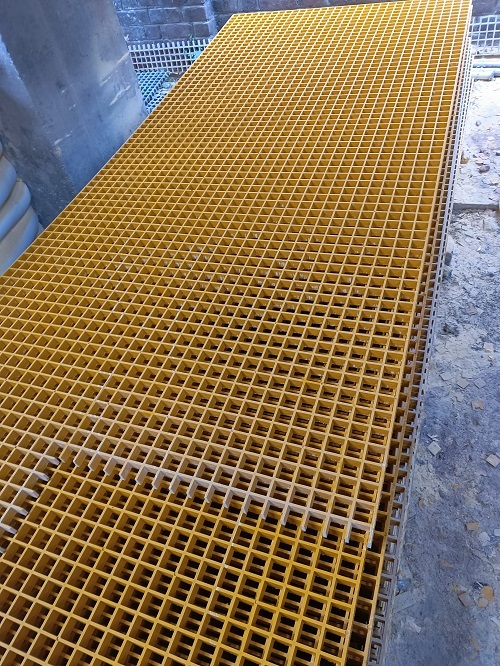

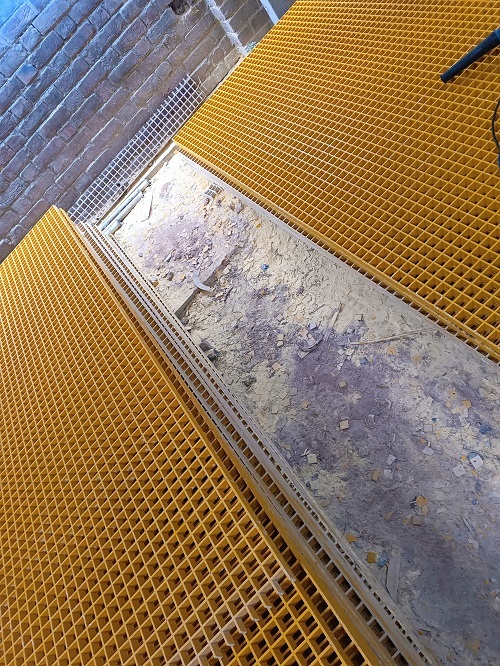

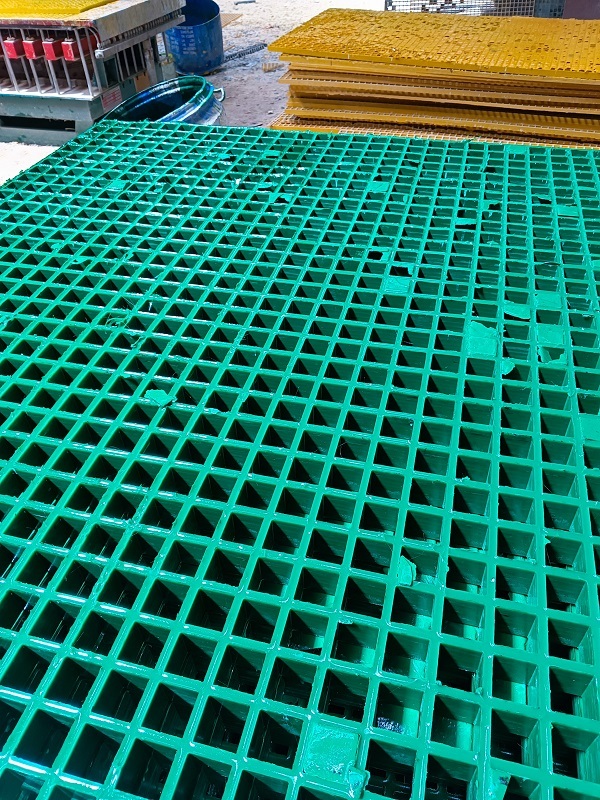

FRP (Fiber Reinforced Plastic) Grating is a composite material grating made from fiberglass and thermosetting resins, such as isophthalic polyester, vinyl ester, or phenolic resins. It is designed to provide high strength, durability, and resistance to corrosion in demanding environments. Unlike traditional metal gratings, FRP gratings are lightweight, non-conductive, and maintenance-free, making them ideal for industrial, chemical, marine, and architectural applications.
Available in molded and pultruded forms, FRP gratings offer exceptional load-bearing capacity and are manufactured in various mesh sizes, thicknesses, and panel dimensions.
Technical Specification of FRP Grating
| Property | Specification |
|---|---|
| Material | Glass Fiber Reinforced Plastic (FRP) |
| Resin Types | Isophthalic Polyester, Orthophthalic Polyester, Vinyl Ester, Phenolic |
| Manufacturing Types | Molded FRP Grating, Pultruded FRP Grating |
| Standard Panel Sizes | 1220 — 3660 mm, 1000 — 3000 mm, Custom sizes available |
| Mesh Size | 38 — 38 mm (Standard), 19 — 19 mm (Mini mesh), 50 — 50 mm |
| Grating Thickness | 25 mm, 30 mm, 38 mm, 50 mm |
| Surface Finish | Concave (anti-slip), Gritted, Covered Top |
| Color Options | Grey, Yellow, Green, Blue, Custom colors available |
| Open Area | 68% (standard mesh) |
| Load Capacity | UDL up to 1,250 kg/m² depending on thickness & span |
| Fire Retardancy | Available as per ASTM E-84 Class 1 or UL 94 V-0 (on request) |
| Electrical Conductivity | Non-conductive |
| UV Resistance | UV stabilized for outdoor applications |
| Chemical Resistance | Resistant to acids, alkalis, salts, and many solvents |
| Water Absorption | <0.5% |
| Operating Temperature Range | -40C to +120C (depends on resin system) |
| Certifications | ASTM D638, ASTM D790, ASTM D4060, OSHA compliant |
| Installation Options | Clamp-based fixing system, SS or FRP fasteners |
Applications
-
Chemical and Petrochemical Plants
-
Offshore Platforms and Marine Docks
-
Wastewater Treatment Plants
-
Power Plants and Substations
-
Walkways, Platforms, and Stair Treads
-
Cooling Towers
-
Solar Panel Walkways
-
Food & Beverage Processing Facilities
Advantages
-
Corrosion and Rust Proof
-
Slip-Resistant Surface
-
Lightweight yet Strong
-
Non-Conductive and Spark-Proof
-
Long Life, Low Maintenance
-
Fire Retardant Options Available
-
Quick & Easy Installation
